Easy Installation and Simple Operation HKLP12 Piezoelectric Wheel Identifier Sensor for Vehicle Identification System

Name: Easy Installation and Simple Operation HKLP12 Piezoelectric Wheel Identifier Sensor for Vehicle Identification System
Brand: HENGLIANG
Price: 1500 USD

Buy cheap Easy Installation and Simple Operation HKLP12 Piezoelectric Wheel Identifier Sensor for Vehicle Identification System product

Brand Name : HENGLIANG

Model Number : HL-LP21

Certification : ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : USD1500-1800

Payment Terms : L/C, T/T

Supply Ability : 30 sets/month

Delivery Time : 7-10 working days

Packaging Details : Wooden packages

Speed Rate : 0.5~120km/h

Power Supply : DC 12V

Sensor Length : 1.5m,2m

Working Electricity : < 10mA

Power : < 1W

Data Storage : Up to 100,000 records

Operation Temperature : -40℃--+85℃

Output Baud Rate : 9600bps

Sensor Width : 57mm

Frequency : UHF

Io Output Format : Active Output

Protection Class : IP68

Working Temperature : -40~+70℃

Length : 1.5m/2m

Contact Now

INTRODUCTION

HKLP12 piezoelectric wheel identifier sensor uses piezoelectric ceramic piezoelectric effect. When the load acts on the piezoelectric ceramic, it generates charge and amplified to produce signals. The HKLP12 piezoelectric wheel axle identifier sensor consists of a number of sub-sensors, which are aligned in an array with equal spacing. When a sub- sensor is loaded, the sensor has an output signal. The controller adopts advanced digital signal processing technology, the probability of miscarriage of justice is small, adopting multiple anti-interference measures, the system stability is good, can identify whether there is axle through, and determine whether a single or double axles. The system has the advantages of high accuracy, fast response, high sensitivity, error prevention, easy installation, simple operation, high stability, long life, maintenance free and so on.

TECHNICAL PARAMETER

Type	HKLP12
Working voltage	DC 15V
Working current	<0.1A
Separation accuracy	≥99%
Minimum inspection axle load	100KG
Protecting level	IP65
Length of sensor	Custom made
Width of sensor	57mm
Height of sensor	40mm
Working environment	Temperature range-40℃～70℃,Relative humidity range 0～95%

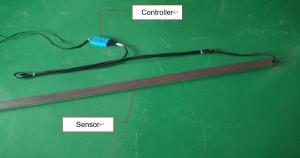

EQUIPMENT COMPOSITION

WIRING SCHEMATICS

Easy Installation and Simple Operation HKLP12 Piezoelectric Wheel Identifier Sensor for Vehicle Identification System

CONSTRUCTION INTRODUCTION

On a flat hard pavement, digging one groove slightly longer than the sensor, 70mm wide and 50mm deep.
Cleaning the groove.
Mixing the sealant evenly and pouring into the groove.
After the sealant curing, polishing flat.
