Name: Toll Station Highway Vehicle Overload Detection WIM System IP68
Brand: Hengliang
Price: 20000 USD

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Type : Vehicle overload detection

Single axle load : 30Ton

Max single axle load : 45Ton

Speed : 0.5~40km/h

MTBF : ≥20000h

Weighing accuracy : 90%~97%

Temperature range : -45~+80℃

Protection level : IP68

Contact Now

Toll Station And Highway Vehicle Overload Detection System & Truck Scales

Product Description

The vehicle separator detects that the vehicle passes, sends a pulse signal to the data collector, and the data collector starts;
When the weighing sensor and the weighing sensor in the road are laid, the data are collected and processed by the quartz sensor, and sent to the axle in turn; The signal generated by the track detection sensor is collected, analyzed and processed by the weighing instrument to obtain the driving track of the vehicle;
The reliability, stability and measurement accuracy of the data collector are improved through multiple weighing operations, weighted average and screening and filtering of abnormal signals;
Using trajectory detection technology and intelligent algorithm, the influence of the consistency error of quartz weighing sensor on the measurement error of quartz dynamic truck scale is minimized;
The weighing instrument integrates the analysis results of the data collector and the driving track of the vehicle, obtains the complete vehicle weighing information such as the weight of the axle or axle group, the weight of the whole vehicle, vehicle model and vehicle speed, and transmits it to the upper computer.

Device Configuration (Low Speed WIM System)	Quartz Sensor
	Weight Meter(Low Speed)
	Weight Module(Low Speed)
	Charge Amplifier
	Wheel Identifier Sensor
	IR Vehicle Separator
	Electrical Cabinet(Optional)

Product Parameters

Weighing error	5%~10%
Single axle load	40Ton
Max Single Load	60Ton
Speed rate	0.5~40km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Power	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

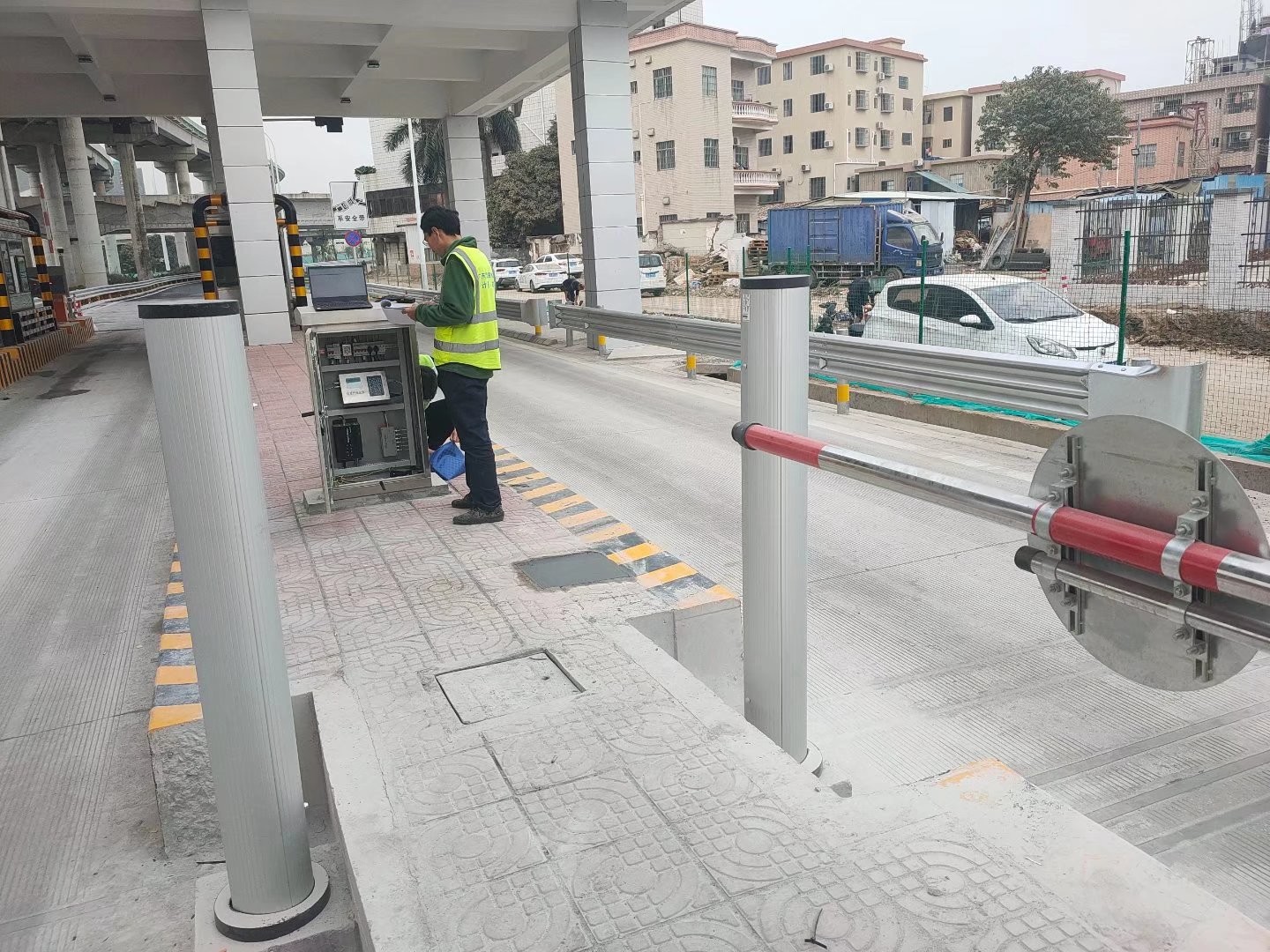

Project Cases

Toll Station Highway Vehicle Overload Detection WIM System IP68
